4507 150/1 WR STD FLANGE HUB

Name: 4507 150/1 WR STD FLANGE HUB
Brand: Hub City
SKU: 4507 150/1 WR STD FLANGE HUB
Availability: OutOfStock

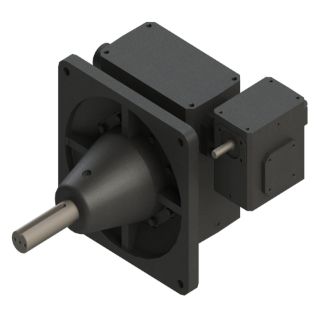

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-37504

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 4500, 150:1 Gear Ratio, 4.28 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 1.688 in Dia x 5.5 in L Output, 11.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 14440 in-lb Output, 4-1/2 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 62.4 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Efficiency:	62.4 %
Gear Ratio:	150:1
Horsepower:	4.28 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	11.7 rpm
Output Size:	1.688 in Dia x 5.5 in L
Output Type:	Shaft
Series:	4500
Torque Rating:	14440 in-lb Output
