Actual Product May Vary From Image

450EWBX-024 FSG

Name: 450EWBX-024 FSG
Brand: Federal Signal
SKU: 450EWBX-024 FSG
Price: 769.97 USD
Availability: OutOfStock

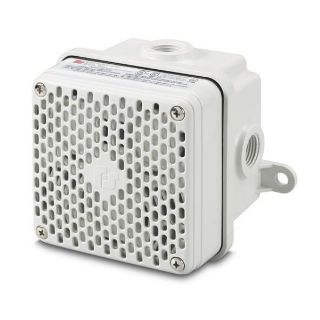

Federal Signal Vibratone® 450EWBX-024 Electronic Horn, 12/24 VDC, 0.12/0.22 A, 94 to 99 dB Sound, Surface Mount, UL Listed, cUL Listed, UL Fire/ULC Fire Listed, Light Gray

Manufacturer: Federal Signal

Manufacturer part number: 450EWBX-024

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$769.97

Qty:

Product Details

Brand Name

Federal Signal

Description

Model 450EWBX hazardous location electronic horn offers a patent pending electronic design that produces a very loud, clear and distinctive electronic tone. The model is capable of producing sustained tones or coded blasts through push button or PLC control devices without a duty cycle or interval limitations. The 450EWBX is ideal for general alarm, start and dismissal, coded paging and process control signaling in areas of high ambient noise levels.

Federal Signal Vibratone® Electronic Horn, Series: 450EWBX, 12/24 VDC, 0.12/0.22 A, 30 to 1000 MHz, 94 to 99 dB, Specifications Met: UL Listed, cUL Listed, UL Fire/ULC Fire Listed, Surface Mount, -65 to 150 deg F Operating, Polycarbonate/Polymer, Light Gray, 5.69 in W x 3.88 in D x 4.39 in H

Application

General Alarm, Start and Dismissal, Coded Paging and Process Control Signaling, Hazardous Location, Marine and Indoor/Outdoor

Standards

BAA Compliant | RoHS Compliant | UL/cUL Listed for Class I, Division 2 | Class II, Division 2 | Class III

Features

No duty cycle
Four wire terminal block and supervisory diode
No detectable RF emissions in a 30 to 1000 MHz frequency range
0.22 A at 24 VDC, 0.12 A at 12 VDC current rating
99 dB at 10 ft/109 dB at 1 m at 24 VDC, 94 dB at 10 ft/104 dB at 1 m at 12 VDC sound level

Specifications

Amperage Rating:	0.12/0.22 A
Color:	Light Gray
Country of Origin:	CN
Dimensions:	5.69 in W x 3.88 in D x 4.39 in H
Frequency Rating:	30 to 1000 MHz
Material:	Polycarbonate/Polymer
Mounting Type:	Surface
Operating Temperature:	-65 to 150 deg F
Series:	450EWBX
Sound Level:	94 to 99 dB
Specifications Met:	UL Listed, cUL Listed, UL Fire/ULC Fire Listed
Voltage Rating:	12/24 VDC
