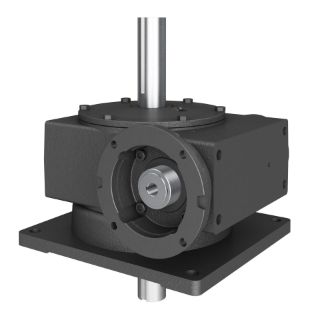

Actual Product May Vary From Image

450V 10/1 AR WR 56C HUB

Name: 450V 10/1 AR WR 56C HUB
SKU: 450V 10/1 AR WR 56C HUB
Availability: OutOfStock

Hub City® 0220-64929 450 Right Angle Single Reduction Style AR Worm Gear Reducer, C-Face Quill Input, Shaft Output, 18.4 hp Input, 10:1 Gear, 175 rpm Maximum Output, 5772 in-lb Output Torque Rating

Manufacturer part number: 0220-64929

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style AR

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style AR, Series: 450, 10:1 Gear Ratio, 18.4 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.75 in Dia x 5.43 in L Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5772 in-lb Output, 4-1/2 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 87.1 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Efficiency:	87.1 %
Gear Ratio:	10:1
Horsepower:	18.4 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1.75 in Dia x 5.43 in L
Output Type:	Shaft
Series:	450
Torque Rating:	5772 in-lb Output
