450V 50/1 CR WR 143TC HUB

Name: 450V 50/1 CR WR 143TC HUB
Brand: Hub City
SKU: 450V 50/1 CR WR 143TC HUB
Availability: OutOfStock

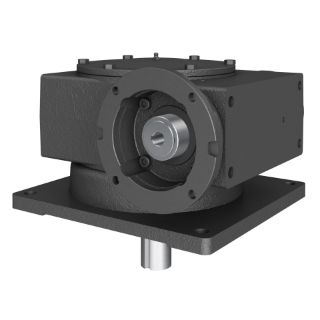

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-64976

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style CR

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style CR, Series: 450, 50:1 Gear Ratio, 5 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1.75 in Dia x 5.43 in L Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 6356 in-lb Output, 4-1/2 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 71.6 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Efficiency:	71.6 %
Gear Ratio:	50:1
Horsepower:	5 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Size:	1.75 in Dia x 5.43 in L
Output Type:	Shaft
Series:	450
Torque Rating:	6356 in-lb Output
