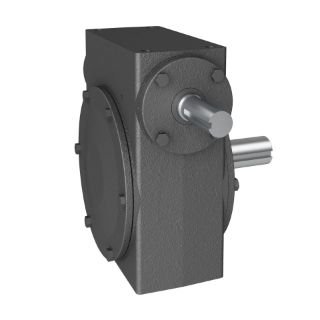

451 10/1 C WR HUB

Name: 451 10/1 C WR HUB
Brand: Hub City
SKU: 451 10/1 C WR HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-64614

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 450, 10:1 Gear Ratio, 18.4 hp Input, Shaft Input, Shaft Output, 1.125 in Dia x 3.21 in L Input, 1.625 in Dia x 4.18 in L Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5772 in-lb Output, 4-1/2 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, 87.1 % Efficiency, Conventional Oil Lubrication, Cast Iron, 11-5/8 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Dimensions:	11-5/8 in H
Efficiency:	87.1 %
Gear Ratio:	10:1
Horsepower:	18.4 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.125 in Dia x 3.21 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1.625 in Dia x 4.18 in L
Output Type:	Shaft
Series:	450
Torque Rating:	5772 in-lb Output
