Actual Product May Vary From Image

45300-B10 ILS

Name: 45300-B10 ILS
Brand: Ilsco
SKU: 45300-B10 ILS
Availability: OutOfStock

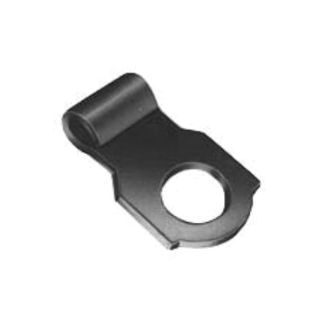

ILSCO® ClearChoice® 45300-B10 Non-Insulated Ring Terminal, 22 to 18 AWG Conductor, 3/8 in L, Copper Alloy

Manufacturer: Ilsco

Manufacturer part number: 45300-B10

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

ILSCO®

Type

Non-Insulated

Description

ILSCO® ClearChoice® Ring Terminal, Non-Insulated, Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 3/8 in Length, Ring Flag Tongue, 0.6563 in W Tongue, 600 VAC, Copper Alloy, Electro-Tin Plated

Application

Terminating Connector Applications

Standards

UL File No. E158587 | PROP65: it is not known to contain any chemicals associated with this regulation

Features

Manufactured from high strength copper alloy
Silver solder brazed seam
Vinyl insulation
Provides easy wire range identification
Provides maximum conductivity
Provides low contact resistance
May be crimped anywhere and will not split open, even under extreme operating stresses
Provides tough pliable insulative qualities to protect connectors and wire from corrosion as well as providing some strain relief
Ensures reliability for copper conductor

Specifications

Conductor Size:	22 to 18 AWG
Conductor Type:	Copper
Country of Origin:	US
Finish:	Electro-Tin Plated
Length:	3/8 in
Material:	Copper Alloy
Stud Size:	#10
Tongue Size:	0.6563 in W
Tongue Type:	Ring Flag
Voltage Rating:	600 VAC
