Actual Product May Vary From Image

4545X4 BRN

Name: 4545X4 BRN
Brand: Regal Rexnord
SKU: 4545X4 BRN
Availability: OutOfStock

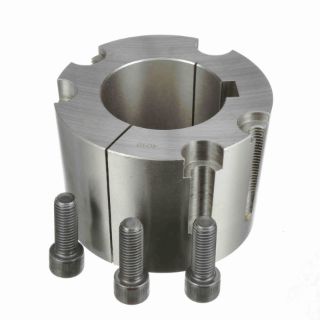

Browning® 3625274 Taper Lock Bushing, 4 in Dia Bore, 6-3/8 in Dia Barrel, 4-1/2 in OAL, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3625274

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Description

Browning® Taper Lock Bushing, 4 in Bore Dia, 6-3/8 in Barrel Dia, 1-1/2 in/ft Taper, 6.13 in Bolt Circle, 3 Bolt Holes, 3/4 x 2 in Screw, 110000 in-lb, For Use With: Browning® Sprockets and HPT Chain Synchronous Belt Drives, 4-1/2 in Overall Length, 1 x 1/2 in Keyway, Steel

Application

Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

Size 4545 bushing
Key to key drive cap screws act as an external key
1-1/2 in/ft taper on barrel since this is a non-self locking taper it provides ease of installation and removal of products from the shaft

Specifications

Barrel Diameter:	6-3/8 in
Bolt Circle Diameter:	6.13 in
Bore Diameter:	4 in
Country of Origin:	CN
Keyway Size:	1 x 1/2 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	4-1/2 in
Screw Size:	3/4 x 2 in
Suitable For Use With:	Browning® Sprockets and HPT Chain Synchronous Belt Drives
Taper:	1-1/2 in/ft
Torque Rating:	110000 in-lb
