Actual Product May Vary From Image

455 30/1 A WR 143TC HUB

Name: 455 30/1 A WR 143TC HUB
SKU: 455 30/1 A WR 143TC HUB
Availability: OutOfStock

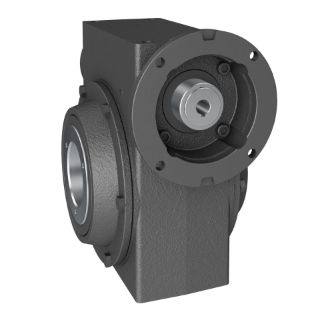

Hub City® 0220-64736 450 Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 7.72 hp Input, 30:1 Gear, 58.3 rpm Maximum Output, 6429 in-lb Output Torque Rating

Manufacturer part number: 0220-64736

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 450, 30:1 Gear Ratio, 7.72 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 6429 in-lb Output, 4-1/2 in Centre Distance, 77 % Efficiency, Conventional Oil Lubrication, Cast Iron, 10 in W

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Dimensions:	10 in W
Efficiency:	77 %
Gear Ratio:	30:1
Horsepower:	7.72 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	58.3 rpm
Output Type:	Hollow Bore
Series:	450
Torque Rating:	6429 in-lb Output
