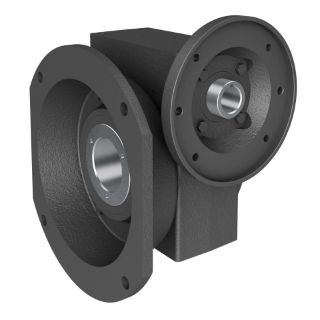

Picture of 456 15/1 L WR 182TC HUB
Actual Product May Vary From Image

456 15/1 L WR 182TC HUB

Hub City® 0220-64769 450 Right Angle Single Reduction Style L Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 13.7 hp Input, 15:1 Gear, 117 rpm Maximum Output, 6226 in-lb Output Torque Rating
Manufacturer part number: 0220-64769
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.
Hub City® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 450, 15:1 Gear Ratio, 13.7 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 117 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 6226 in-lb Output, 4-1/2 in Centre Distance, 1/4 x 1/8 in Input Keyway, 84.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 10-3/4 in W

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

  • Modular design
  • Universal mounting dimensions
  • Alloy shafting

Specifications

Centre Distance:4-1/2 in
Country of Origin:US
Dimensions:10-3/4 in W
Efficiency:84.4 %
Gear Ratio:15:1
Horsepower:13.7 hp Input
Input Maximum Speed:1750 rpm
Input Size:1-1/8 in Dia
Input Type:C-Face Quill
Keyway Size:1/4 x 1/8 in Input
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:117 rpm
Output Type:Hollow Bore
Series:450
Torque Rating:6226 in-lb Output
