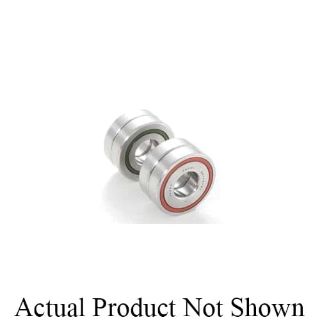

45TAB10DUP4 NAC

The single-row angular contact ball bearing was designed to support radial, axial or composite loads, however, the axial load must be in one direction. The direction of the load through the balls forms the contact angle. This Super Precision Angular Contact Ball Bearing is tailored toward the machine tool industry. It is Manufactured to very high quality standards (ISO: Class 4, ABEC7) and has a 60 deg contact angle which is great for very high axial thrust loads and ball screw applications. These bearings are generally used in pairs because axial forces are generated when radial loads are applied. These are Universally Ground bearings that can be arranged in any configuration. These bearings are most commonly used in high accuracy and high-speed precision machining center, measuring, robotic and feed actuator applications.

NACHI Super Precision Angular Contact Ball Bearing, Ball Screw Support, Series: TAB, 45 mm Bore, 100 mm OD, 1 Row, 20 mm Width, 60 deg Contact Angle, Open Closure, 110160 N Dynamic/226000 N Static Load, Steel Bearing, Polyamide Cage, 2850 rpm Grease/3500 rpm Oil Maximum, 250 deg F
