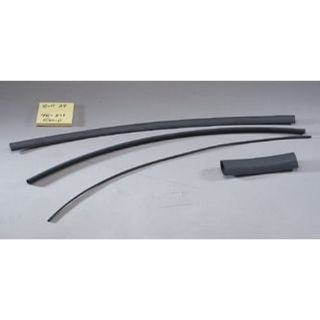

Actual Product May Vary From Image

46-324 IDE

Name: 46-324 IDE
Brand: Ideal Industries
SKU: 46-324 IDE
Availability: OutOfStock

IDEAL® Thermo-Shrink® 46-324 Flexible Heat Shrink Tubing, 0.539 in ID Expanded, 0.252 in ID Recovered, 0.026 in THK Wall Recovered, 200 ft L, Polyolefin, Black

Manufacturer: Ideal Industries

Manufacturer part number: 46-324

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Type

Flexible

Description

IDEAL® Thermo-Shrink® Heat Shrink Tubing, Flexible, 0.6 kVAC, 0.539 in Inner Dia Expanded, 0.252 in Inner Dia Recovered, Thin Wall, 0.026 in Wall Thickness Recovered, 4 to 1 AWG Wire, 2:1 Shrink, 200 ft Length, -55 to 125 deg C, 70 deg C Shrink, Polyolefin, Black

Standards

RoHS Compliant | UL Listed | cULus Listed | UL 486D | cULus Listed

Features

Polyolefin material electrically insulates and protects inline components, disconnect terminals and splices with its high strength and excellent resilience
Use to bundle wires for very flexible light duty harnesses
Highly flame-retardant and flexible
Resistant to copper, chemicals, common fluids and solvents
1/2 in OD
600% elongation at break for ASTM D638 test method
30% eccentricity
1014 Ohm-cm volume resistivity for ASTM D876 test method
+/-5% longitudinal shrinkage
20 kV/mm dielectric strength for ASTM D150 test method
350% ageing after break for UL 224 test method
Cold bend test (-55 deg C/4 hr) no cracking for UL 224 test method
Copper corrosion pass for UL 224 test method
Chemical-resistance pass for UL 224 test method
Longitudinal shrinkage - +/-5% for UL 224 test method
30% eccentricity as per UL 224 test method

Specifications

Color:	Black
Country of Origin:	US
Inner Diameter Expanded:	0.539 in
Inner Diameter Recovered:	0.252 in
Length:	200 ft
Material:	Polyolefin
Shrink Ratio:	2:1
Shrink Temperature:	70 deg C
Temperature Rating:	-55 to 125 deg C
Voltage Rating:	0.6 kVAC
Wall Thickness Recovered:	0.026 in
Wall Type:	Thin
Wire Size:	4 to 1 AWG
