Actual Product May Vary From Image

460J10 BRN

Name: 460J10 BRN
Brand: Regal Rexnord
SKU: 460J10 BRN
Availability: OutOfStock

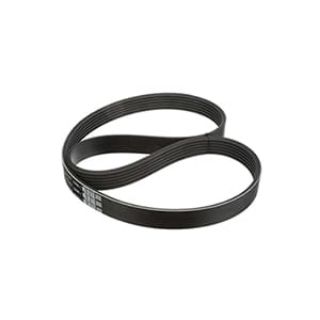

Browning® 1104488 Non-Cogged V-Belt, J Section, 3/32 in W Top, 46-1/2 in L Outside, 0.14 in THK, Neoprene

Manufacturer: Regal Rexnord

Manufacturer part number: 1104488

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Non-Cogged

Description

A Poly-V belt is a single integrated assembly that provides even load distribution and uniform length of the individual belt segments. The 1-piece design eliminates the close matching of individual belts that is required for optimum performance.

Browning® V-Belt, Non-Cogged, J Section, 3/32 in Top Width, 46-1/2 in Outside Length, 0.14 in Thickness, 10 Ribs, 180 deg F, Neoprene, Polyester Reinforced, Black

Application

Bucket Elevators, Dough Mixers, Light Duty Conveyors, Laundry Machinery, Revolving, Vibrating Screens, Piston Pumps and Textile Machinery Industries

Features

Molded ribs this construction technique assures better rib formation and uniformity
High tensile cord - specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
3/32 in rib spacing
46 in L pitch
Oil and heat resistant

Specifications

Color:	Black
Country of Origin:	MX
Material:	Neoprene
Number of Ribs:	10
Outside Length:	46-1/2 in
Reinforced Material:	Polyester
Section Size:	J
Temperature Range:	180 deg F
Thickness:	0.14 in
Top Width:	3/32 in
