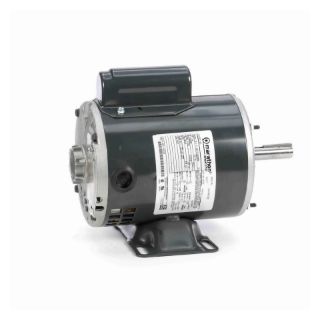

Actual Product May Vary From Image

4707 MAR

Name: 4707 MAR
Brand: Marathon Electric Motors
SKU: 4707 MAR
Availability: OutOfStock

Marathon® 5KH33HN5722X 4-Pole Continuous Duty Split Phase AC Motor, Open/Enclosed Enclosure, 0.33 hp, 115/230 VAC, 60 Hz, 1 ph Phase, 48Y Frame, 1725 rpm Speed, Resilient Base Mount

Manufacturer: Marathon Electric Motors

Manufacturer part number: 5KH33HN5722X

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Marathon®

Type

4-Pole Continuous Duty Split Phase

Description

Marathon® AC Motor, 4-Pole Continuous Duty Split Phase, Fan & Blower Motors Application, 0.33 hp, 115/230 VAC, 6 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, Open/Enclosed Enclosure, 48Y Frame, 1/2 in Dia x 1-1/2 in L Shaft, CW/CCW Rotation, 1.35 Service Factor, Sleeve Bearing, Resilient Base Mounting, 40 deg C, Insulation Class: Class B, Steel, 9.12 in L x 5.66 in W x 5.83 in H Dimensions

Standards

CSA Certified | UL Listed

Features

Thermal protection
Variable torque on two speed motors
Extended thru-bolts
Heavy gauge steel frame and base

Specifications

Amperage Rating:	6 A
Application Type:	Fan & Blower Motors
Bearing Type:	Sleeve
Country of Origin:	MX
Dimensions:	9.12 in L x 5.66 in W x 5.83 in H
Enclosure Type:	Open/Enclosed
Frame:	48Y
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Resilient Base
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1.35
Shaft Size:	1/2 in Dia x 1-1/2 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	115/230 VAC
