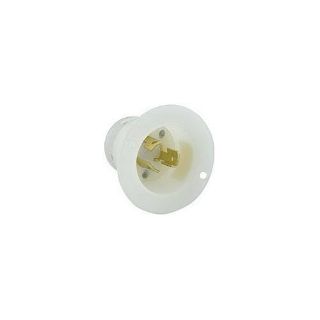

Picture of 4716-C LEV
Actual Product May Vary From Image

4716-C LEV

Leviton® 4716-C Grounding Locking Flanged Inlet, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Manufacturer: Leviton Manufacturing
Manufacturer part number: 4716-C
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$32.10

Product Details

Brand Name

Leviton®

Type

Grounding

Alternate Supplier #

Grainger - 25NT85

Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton® Locking Flanged Inlet, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15P NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions

Application

Commercial Applications

Standards

ANSI C-73 Standard | CSA C22.2 No. 42, File No. LR-406 | NEMA WD-1, WD-6 | NOM 057 Certified | Federal Specification WC-596, File No. E13393 | UL 498, File No. E13393 | V-2 per UL94 Flammability Rating

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:US
Dimensions:2.5 in Dia x 1.78 in H
Grade:Industrial
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA L5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back Wire
Voltage Rating:125 VAC
