4720-C LEV

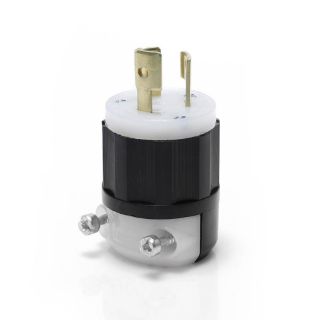

Leviton® Black & White® 4720-C 1-Phase Grounding Cable Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Manufacturer: Leviton Manufacturing
Manufacturer part number: 4720-C
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$28.21

Product Details

Brand Name

Leviton®

Type

1-Phase Grounding

Alternate Supplier #

Grainger - 1PKK8

Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton® Black & White® Locking Plug, 1-Phase Grounding Cable Mount, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15P, Industrial Grade, 0.24 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 1.98 in L

Application

Industrial Applications

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating

Features

Certified for current interrupting at full rated current

Specifications

Amperage Rating:15 A
Color:Black/White
Cord Diameter:0.24 to 0.7 in
Country of Origin:US
Dimensions:1.53 in Dia x 1.98 in L
Grade:Industrial
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA L5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
