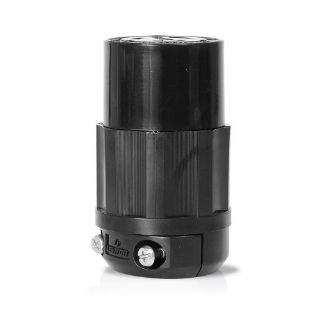

Actual Product May Vary From Image

4729-C LEV

Name: 4729-C LEV
Brand: Leviton Manufacturing
SKU: 4729-C LEV
Price: 49.95 USD
Availability: OutOfStock

Leviton® 4729-C Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Manufacturer: Leviton Manufacturing

Manufacturer part number: 4729-C

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$49.95

Qty:

Product Details

Brand Name

Leviton®

Type

1-Phase Grounding

Description

Leviton® Locking Connector, 125 VAC, 15 A, 0.5 hp, 2 Pole, 3 Wires, NEMA L5-15R, Grade: Industrial, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 2.76 in L

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 No. 42 LR-406 | NOM 057 Approved | NEMA WD-1 | WD-6 | UL 498 | UL 94-V-2

Features

Super tough nylon body resists damage from severe impact, abrasion and chemicals
Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
Cord-clamp does not have to be disassembled from body for wiring - accepts all wire mesh connection strain reliefs
1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
Grounding
1-phase
Cable mounting
Impact modified nylon
18 to 10 AWG terminal accommodation

Specifications

Amperage Rating:	15 A
Color:	Black/White
Cord Diameter:	0.24 to 0.7 in
Country of Origin:	US
Dimensions:	1.53 in Dia x 2.76 in H
Grade:	Industrial
Horsepower:	0.5 hp
Material:	Nylon
NEMA Rating:	NEMA L5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
