Picture of 47302.5L LIT
Actual Product May Vary From Image

47302.5L LIT

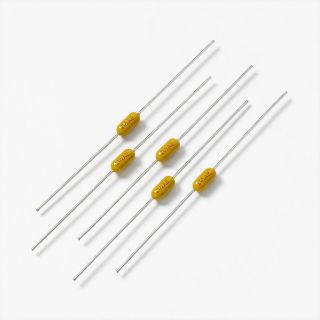

Littelfuse® PICO® II Slo-Blo® 47302.5L 0473 Small Subminiature Fuse, 2.5 A, 125 VAC/VDC, 50 A Interrupt, Leaded Body
Manufacturer: Littelfuse
Manufacturer part number: 47302.5L
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Littelfuse®

Type

Small

Description

The PICO® II Slo-Blo® fuse combines time delay performance characteristics with the proven reliability of a PICO® fuse.
Littelfuse® PICO® II Slo-Blo® Subminiature Fuse, Small, Series: 0473, Non-Indicating, 2.5 A, 125 VAC/VDC, 50 A Interrupt, 0.002 to 0.1 s Response, Axial Terminal, Through Hole Mount, Leaded Body Type, Ceramic, 0.135 in H x 2.468 in W Body Size

Application

For flat panel display TV, LCD monitor, lighting system, medical equipment, industrial equipment, electronic equipment and appliances

Standards

UL Listed | CSA File No. 29862 | Military Specification STD-202 Method 106 | cULus File No. E10480 | PSE File No. NBK200416-JP1021 | PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Enhanced inrush withstand
  • Wide range of current ratings
  • Wide operating temperature range
  • Low temperature derating
  • 4 hr at 100%, 1 to 60 s at 200%, 0.2 to 3 s at 300%, 0.002 to 0.1 s at 800% response time

Specifications

Amperage Rating:2.5 A
Body Size:0.135 in H x 2.468 in W
Body Type:Leaded
Country of Origin:CA
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:50 A
Material:Ceramic
Mounting Type:Through Hole
Response Time:0.002 to 0.1 s
Series:0473
Terminal Type:Axial
Voltage Rating:125 VAC/VDC
