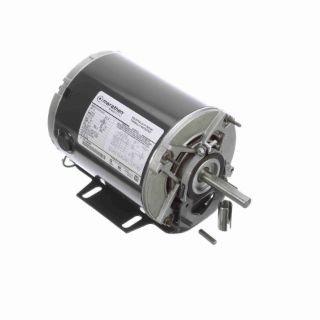

Actual Product May Vary From Image

4798 MAR

Name: 4798 MAR
Brand: Marathon Electric Motors
SKU: 4798 MAR
Availability: OutOfStock

1/3 HP Fan and Blower HVAC/R Motor, 1 phase, 3600 RPM, 115/230 V, 48Z Frame, ODP

Manufacturer part number: 4798

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

5KH35FN153T

Ball bearings Shaft extension 2-1/4" long by 1/2" diameter Heavy gauge steel frame and base

C Dim (IN):	10.25
CE:	N
Connection Drawing Number:	52A105383AA
Country of Origin:	Mexico
CSA:	Y
Current:	6.8
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	0
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.79
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/3
Insulation Class:	B
KVA Code:	P
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A102484P1
Phases:	1
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Rotation:	Counterclockwise/Clockwise
Service Factor:	1.35
Shaft Diameter (IN):	0.5
Shaft Extension:	2.25
Speed:	3450
Speed Max:	3450
Starting Type:	SM
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115/230
