4805 LEE

Name: 4805 LEE
Brand: Marathon Electric Motors
SKU: 4805 LEE
Price: 299.81 USD
Availability: OutOfStock

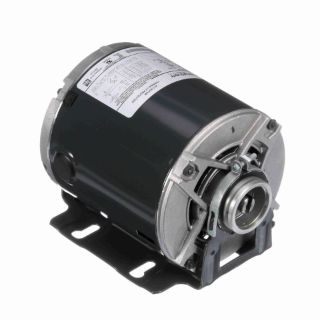

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

4805

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$299.81 / EA

Description

Alternate Supplier #

5KH32GNB811X

Features

Resilient base Completely interchangeable with OEM units Automatic reset thermal protector Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower

Specifications

C Dim (IN):	7.69
CE:	N
Connection Drawing Number:	52A105383AA
Country of Origin:	Mexico
CSA:	Y
Current:	5.5-5.6
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	62
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.16
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Y
Frame Type:	48Y
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/3
Insulation Class:	B
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A111766P1
Phases:	1
Power Factor:	0
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Rotation:	Counterclockwise/Clockwise
Service Factor:	1
Shaft Diameter (IN):	0.63
Shaft Extension:	0.17
Speed:	1725/1425
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	100-120/200-240
