Actual Product May Vary From Image

481000 LIT

Name: 481000 LIT
Brand: Littelfuse
SKU: 481000 LIT
Availability: OutOfStock

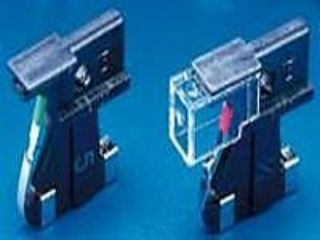

Littelfuse® 04810000V Alarm Indicating Fast Acting Dummy Fuse, 125 VAC/VDC

Manufacturer: Littelfuse

Manufacturer part number: 04810000V

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Type

Alarm Indicating Fast Acting

Description

481 series alarm indicating fuses are designed to reduce down time by immediately pinpointing the blown (open) circuit while triggering an LED or audio alarm. This item requires 482 series mating fuse holder. All ranges of 481 series fuses are available as our original design and the 2 to 20 A range is now available as a RoHS compliant option (use the "P" designator when ordering).

Littelfuse® Dummy Fuse, Alarm Indicating Fast Acting, Series: 481, Indicating, 125 VAC/VDC, Polyphenylene Sulfide, 0.665 in L x 0.228 in W x 0.772 in H Body Size

Application

For telecommunications and control panel circuits

Standards

UL File No. E71611 Recognized | CSA File No. LR29862 | UL 94-V-0 Flammability Rating

Features

Color coded indicator flags indicate ampere rating
Clear plastic lens option available for additional safety
Contacts made of bright alloy plated beryllium copper

Specifications

Body Size:	0.665 in L x 0.228 in W x 0.772 in H
Country of Origin:	MX
Indicating/Non-Indicating:	Indicating
Material:	Polyphenylene Sulfide
Series:	481
Voltage Rating:	125 VAC/VDC
