48646 LEV

Name: 48646 LEV
Brand: Leviton Manufacturing
SKU: 48646 LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

48646

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Cable Mount Non-Grounding Non-Polarized Short Flat

Description

Leviton® offers a large selection of 15, 20, 30 and 50 A straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

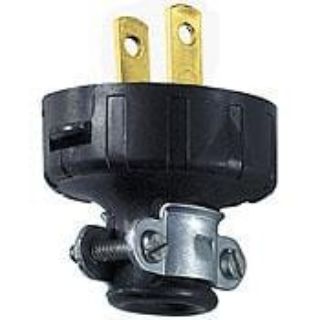

Leviton® Straight Blade Plug, Cable Mount Non-Grounding Non-Polarized Short Flat, 125 VAC, 15 A, 2 Poles, 2 Wires, NEMA 1-15P, Residential Grade, 0.437 in Cord Dia, -40 to 65 deg C, Vinyl, Black

Standards

NOM 057 | UL File No. E13393 | CSA Certified | UL94 V-2 Flammability Rating

Features

Triple drive head screws standard, Philips® and Robertson
NEMA configuration number and rating molded on face of device for easy identification
Rubber body is dirt and moisture resistant
Husk and module keyed for easy alignment during wiring
Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
Motor base inlet accepts 10 AWG maximum copper or copper clad wire
Brass plug blades and connector contacts for maximum conductivity
18 to 14 AWG terminal accommodation

Specifications

Amperage Rating:	15 A
Color:	Black
Cord Diameter:	0.437 in
Country of Origin:	MX
Grade:	Residential
Material:	Vinyl
NEMA Rating:	NEMA 1-15P
Number of Poles:	2
Number of Wires:	2
Temperature Rating:	-40 to 65 deg C
Voltage Rating:	125 VAC
