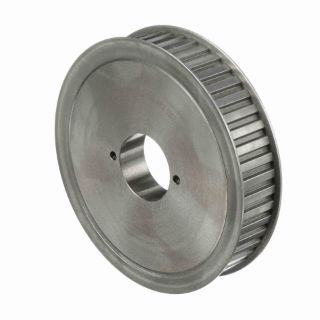

Actual Product May Vary From Image

48LH100 BRN

Name: 48LH100 BRN
Brand: Regal Rexnord
SKU: 48LH100 BRN
Price: 277.82 USD
Availability: OutOfStock

Browning® Gearbelt® 1056688 Type 16 Synchronous Timing Pulley With Flange, 3/8 to 1-1/2 in Split Taper Bore, 5.7 in OD, 48 Grooves, 5.73 in Dia Pitch, 1-1/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1056688

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$277.82

Qty:

Product Details

Brand Name

Browning®

Type

Type 16

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 16, Split Taper Bore, 3/8 to 1-1/2 in Bore Dia, 5.7 in Outside Dia, 5.73 in, 48 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, 6 in Flange Dia, 2-1/2 in Hub Dia, 1/32 in Hub Projection, H Bushing, 1-7/16 in Overall Length, For Use With: 1 in W Type L100 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	3/8 to 1-1/2 in
Bore Type:	Split Taper
Bushing Type:	H
Country of Origin:	US
Face Width:	1-1/4 in
Flange Diameter:	6 in
Hub Diameter:	2-1/2 in
Hub Projection:	1/32 in
Number of Grooves:	48
Outside Diameter:	5.7 in
Overall Length:	1-7/16 in
Pitch:	3/8 in
Pitch Diameter:	5.73 in
Suitable For Use With:	1 in W Type L100 Belt
