Actual Product May Vary From Image

48XHS300 BRN

Name: 48XHS300 BRN
Brand: Regal Rexnord
SKU: 48XHS300 BRN
Availability: OutOfStock

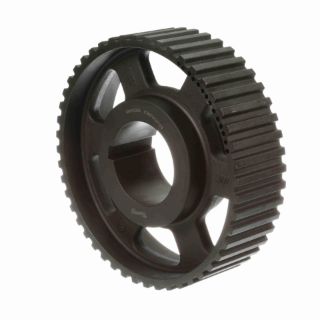

Browning® Gearbelt® 1057835 Type 14 Synchronous Timing Pulley, 1-11/16 to 4-1/4 in Split Taper Bore, 13.259 in OD, 48 Grooves, 13.369 in Dia Pitch, 3-5/8 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1057835

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 14

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 14, Split Taper Bore, 1-11/16 to 4-1/4 in Bore Dia, 13.259 in Outside Dia, 13.369 in, 48 Grooves, 7/8 in Pitch, 3-5/8 in Face Width, 6-3/8 in Hub Dia, 29/32 in Hub Projection, S1 Bushing, 4-29/32 in Overall Length, For Use With: 3 in W Type XH300 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range
Without Flange

Specifications

Bore Diameter:	1-11/16 to 4-1/4 in
Bore Type:	Split Taper
Bushing Type:	S1
Country of Origin:	US
Face Width:	3-5/8 in
Hub Diameter:	6-3/8 in
Hub Projection:	29/32 in
Number of Grooves:	48
Outside Diameter:	13.259 in
Overall Length:	4-29/32 in
Pitch:	7/8 in
Pitch Diameter:	13.369 in
Suitable For Use With:	3 in W Type XH300 Belt
