495A-903B8 TKN

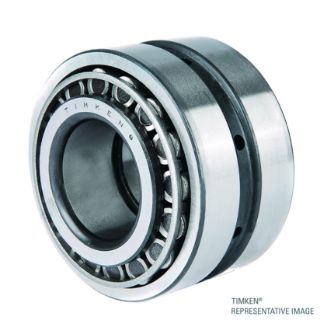

Picture of 495A-903B8 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
495A-903B8
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,367.61 / EA

Description

Brand Name

Timken®

Type

Type TDO

Description

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken®, 495A-903B8, Tapered Roller Bearing Assembly, Type TDO, Series: 495, 3 in Bore, 5-3/8 in OD, 2 Rows, 2-3/4 in Width, 60500 lb Dynamic/97200 lb Static Load, Steel Bearing, -65 to 250 deg F

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Standards

ABMA/ANSI Standard

Features

  • Internal geometry provides increased stiffness and exceptional runout
  • Radial runout high point marked for accurate installation
  • Two row double outer race bearings (TDO) feature a double outer race (cup) and two single inner races (cones)
  • Outer race features groove and lubrication holes in the outside diameter
  • Most commonly sold with a spacer to control the axial internal clearance to eliminate the adjustment procedure
  • Internal axial clearance is marked on the spacer for identification and reorder purposes
  • Internal axial clearance is factory preset to create a matched bearing assembly
  • Components cannot be mixed with other components from another bearing assembly
  • Wide effective bearing spread that is ideal for applications in which overturning moments are a significant load component
  • Can be used in fixed positions or allowed to float in the housing bore

Includes

(1) 495A 2-1/8 in W Double Cone

Specifications

Bearing Material:Steel
Bore Diameter:3 in
Cage Material:Steel
Load Capacity:60500 lb Dynamic/97200 lb Static
Number of Rows:2
Outside Diameter:5-3/8 in
Series:495
Temperature Rating:-65 to 250 deg F
Width:2-3/4 in
