Actual Product May Vary From Image

49884-SSC LEV

Name: 49884-SSC LEV
Brand: Leviton Manufacturing
SKU: 49884-SSC LEV
Availability: OutOfStock

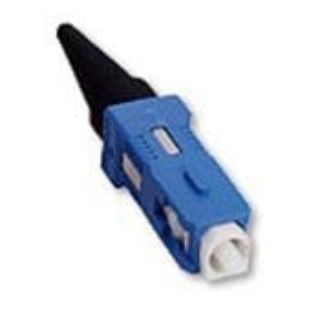

Leviton® Thread-Lock® 49884-SSC Fiber Optic Connector, SC Connector, Single-Mode Fiber, 9/125 um, Ceramic Ferrule, Push/Pull Dual Latch Mount

Manufacturer: Leviton Manufacturing

Manufacturer part number: 49884-SSC

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Description

Leviton® Thread-Lock® Fiber Optic Connector, SC Connector, Single-Mode Fiber, 9/125 um Cable, Ceramic Ferrule, Push/Pull Dual Latch Mounting, Nickel Plated Brass, Blue

Application

Commercial Applications

Standards

TIA/EIA-568-B

Features

Reusable, compression type retention and no epoxy or UV cure
Multiple mating/fully intermateable
2 min termination time
0.373 in Dia x 2.298 in L size
-40 to 80 deg C temperature rating
Plastic housing, santoprene strain-relief boot
0.2 dB insertion loss
Applicable to 3 mm, 900 micron, and 250 micron cable
The connector shall be of a design that allows removal and retermination, using the same connector to reduce material waste
Appropriate for permanent or temporary applications
Singlemode fiber

Specifications

Cable Construction:	9/125 um
Color:	Blue
Connector Type:	SC
Country of Origin:	US
Ferrule Type:	Ceramic
Fiber Type:	Single-Mode
Material:	Nickel Plated Brass
Mounting Type:	Push/Pull Dual Latch
