49991-5LC LEV

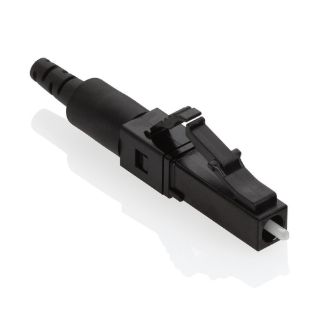

Leviton® 49991-5LC Pre-Polished Fiber Optic Connector, LC Connector, Multi-Mode Fiber, Pre-Radiused Zirconia Ferrule
Manufacturer: Leviton Manufacturing
Manufacturer part number: 49991-5LC
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Pre-Polished

Description

FastCAM® connectors are pre-polished, field installable connectors that eliminate the need for hand polishing, bonding or epoxy in the field. FastCAM® connectors are available in LC, SC or ST, 1-mode or multi-mode (standard 50/125 um, 62.5/125 um and laser optimized 50/125 um) configurations terminated on 250 or 900 um buffered fiber and/or 2 or 3 mm jacketed fiber. LC and SC connectors allow verification of optical continuity, by use of the visual fault locator (VFL). FastCAM® connectors are designed for premise environments, patch panels and rapid repair/replacement requirements, as well as data centers and applications requiring fast network deployment.
Leviton® Fiber Optic Connector, Pre-Polished, LC Connector, Multi-Mode Fiber, Pre-Radiused Zirconia Ferrule, Black

Application

Commercial Applications

Standards

ANSI/TIA-568-C.3, 604-10 A

Features

  • Precision mechanical termination
  • Fast and easy to install (<1 min)
  • No polishing, epoxy curing, consumables
  • No proprietary tools
  • Low insertion loss connection
  • Uses proven, molded V-groove technologies
  • Higher yields with visual fault locator (VFL) compatible LC, SC and ST connectors
  • 25 dB return loss
  • -40 to 75 deg C temperature rating

Specifications

Cable Construction:50/125 um
Color:Black
Connector Type:LC
Country of Origin:MX
Ferrule Type:Pre-Radiused Zirconia
Fiber Type:Multi-Mode
Series:49991
