49MR1-CY LEV

Rhino-Hide® receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 to 777 kcmil. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" version receptacle housings feature a 45 deg angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4 in for installation on smaller panels).

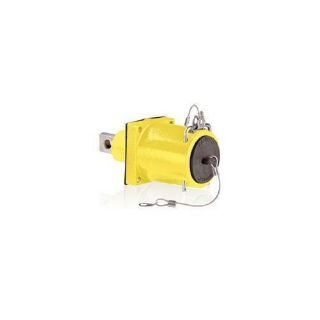

Leviton® Rhino-Hide® Single Pole Receptacle, 45 deg Male, Series: 49 Series, 1000 VAC, 1135 A, 313 to 777 kcmil Wire, Single Hole Busbar, Alloy Contact, Cast Aluminum Housing, NEMA 3R, Panel Mount, 1-Phase, Industrial Grade, -60 to 135 deg C, Yellow, Powder Coated, 3.91 in Dia x 4.98 in L
