4C140E BRN

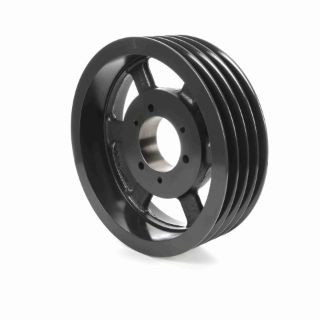

Browning® 1006501 Type A Arm Multiple Sheave, 0.88 to 3.5 in QD® Bore, 14.4 in OD, 4 Grooves, 14.4 in Dia Pitch, 4-1/4 in W Face
Manufacturer: Regal Rexnord
Manufacturer part number: 1006501
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,125.80

Product Details

Brand Name

Browning®

Type

Type A Arm

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type A Arm, QD® Bore, 0.88 to 3.5 in Bore, 14.4 in OD, 14.4 in Pitch Diameter, 4 Grooves, 4-1/4 in Face Width, E Bushing, For Use With: GripBelt® C Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:0.88 to 3.5 in
Bore Type:QD®
Bushing Type:E
Country of Origin:MX
Face Width:4-1/4 in
Material:Cast Iron
Number of Grooves:4
Outside Diameter:14.4 in
Pitch Diameter:14.4 in
Suitable For Use With:GripBelt® C Cross Section V-Belt
