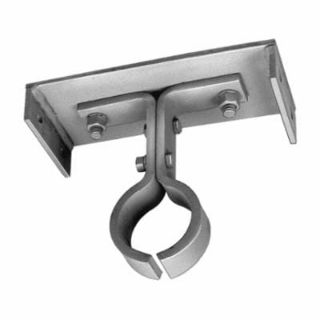

Martin 4CH2262 Conveyor Hanger, 226 Style, 4 in Dia Conveyor, 1 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 4CH2262
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$89.69

Product Details

Brand Name

Martin

Description

No. 226 hangers are designed for flush mounting inside the trough permitting dust-tight or weather-proof operation. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.
Martin Conveyor Hanger, 226 Style, 4 in Conveyor Diameter, 1 in Coupling, 2 in Mounting Hole Center, 3/8 x 1 in Bolt, 5 in Top Frame Length, 3-1/2 in Top Frame Width, 0.188 in Top Frame Thickness, 4 Mounting Bolts, 5/16 x 3/4 in Slot, Steel

Standards

CEMA Standard | PTDA Certified

Specifications

Bolt Size:3/8 x 1 in
Conveyor Diameter:4 in
Country of Origin:US
Coupling Size:1 in
Material:Steel
Mounting Hole Center:2 in
Number of Mounting Bolts:4
Slot Size:5/16 x 3/4 in
Style:226
Top Frame Length:5 in
Top Frame Thickness:0.188 in
Top Frame Width:3-1/2 in
