4D27R BSF

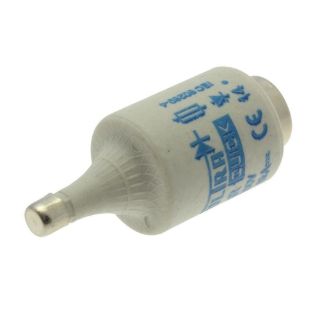

Bussmann 4D27R Low Voltage Ultra Rapid Fuse, 4 A, 500 VAC, Class: gR
Manufacturer: Bussmann
Manufacturer part number: 4D27R
Availability: Expected Leadtime 71 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Low Voltage Ultra Rapid

Description

Eaton's Bussmann series low voltage D and D0 bottle fuses are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both D and D0 fuse types are available in three operating characteristics: time delay, fast acting and ultra rapid versions that can fit into screw cap fuse carriers for mounting on 1 or 3 pole DIN-Rail or panel mount
Bussmann Fuse, Low Voltage Ultra Rapid, Indicating/Non-Indicating: Non-Indicating, 4 A, 500 VAC, Class: gR, Ceramic, Brown, 22 mm H Body Size

Application

Power Distribution and Control, Electrical Assemblies, Panels and EOEM- Control Panels for Machines, Panel Builders, Aftermarket, Stationary Machine Equipment In Factory - Robotics, Industrial Grade Applications

Standards

CE Certified | GoST-R Certified | IEC 60269 | VDE Certified

Features

  • Special Features: Ultra-rapid
  • Package Type: Standard
  • Quantity: 25 per package
  • Weight: 0.026 kg
  • Height: 22 mm
  • Indicator: Non-Indicating
  • Warranty: 1 Year Limited

Specifications

Amperage Rating:4 A
Body Size:22 mm H
Class:gR
Color:Brown
Indicating/Non-Indicating:Non-Indicating
Material:Ceramic
Voltage Rating:500 VAC
