Actual Product May Vary From Image

4F3V26X1 BRN

Name: 4F3V26X1 BRN
Brand: Regal Rexnord
SKU: 4F3V26X1 BRN
Availability: OutOfStock

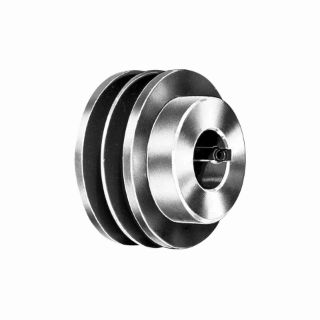

Browning® 1059484 Type F Multiple Sheave, 1 in Finished Bore, 2.65 in OD, 4 Grooves, 2.6 in Dia Pitch, 1-29/32 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1059484

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type F

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type F, Finished Bore, 1 in Bore, 2.65 in OD, 2.6 in Pitch Diameter, 4 Grooves, 1-29/32 in Face Width, 2.188 in Diameter Hub, 15/32 in Hub Projection, 2-3/8 in Overall Length, For Use With: GripBelt® 3V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

All sheaves are statically balanced to assure smooth and vibration free performance
Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Includes

1/4 x 1/8 in Keyseat and (2) Hollow Head Setscrews

Specifications

Bore Diameter:	1 in
Bore Type:	Finished
Country of Origin:	MX
Face Width:	1-29/32 in
Hub Diameter:	2.188 in
Hub Projection:	15/32 in
Material:	Cast Iron
Number of Grooves:	4
Outside Diameter:	2.65 in
Overall Length:	2-3/8 in
Pitch Diameter:	2.6 in
Suitable For Use With:	GripBelt® 3V Cross Section V-Belt
