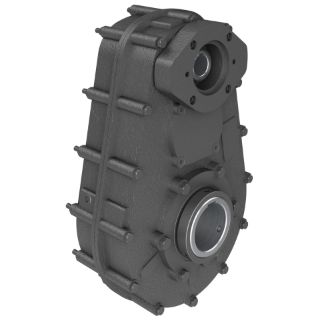

Actual Product May Vary From Image

4H 7.99/1 S B2 2.188 HUB

Name: 4H 7.99/1 S B2 2.188 HUB
SKU: 4H 7.99/1 S B2 2.188 HUB
Availability: OutOfStock

Hub City® 20-2000703 4 Series Type S Double Reduction Parallel Shaft Gear Drive, Hydraulic Adapter Input, Hollow Bore Output, 40.1 hp, 7.99:1 Gear, 219 rpm Maximum Output, 11314 in-lb Torque Rating

Manufacturer part number: 20-2000703

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Type S Double Reduction

Description

Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement.

Hub City® Parallel Shaft Gear Drive, Type S Double Reduction, Series: 4 Series, 7.99:1 Gear Ratio, 40.1 hp, Hydraulic Adapter Input, Hollow Bore Output, 1 in Dia Input, 3/4 x 3/16 in Output Keyway, Oil Lubrication, Shaft Mounting, Cast Iron, 12 in L x 18-15/16 in H Dimensions

Standards

SAE B-2

Features

Rugged cast iron housing
High strength gearing
Alloy shafting
Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
Heavy duty industrial seals
1 in 15 teeth - 16/32 diametral pitch spline input

Specifications

Dimensions:	12 in L x 18-15/16 in H
Gear Ratio:	7.99:1
Horsepower:	40.1 hp
Input Size:	1 in Dia
Input Type:	Hydraulic Adapter
Keyway Size:	3/4 x 3/16 in Output
Lubrication Type:	Oil
Material:	Cast Iron
Mounting Type:	Shaft
Output Type:	Hollow Bore
Series:	4 Series
