Actual Product May Vary From Image

4HF206-R MSG

Name: 4HF206-R MSG
Brand: Martin Sprocket & Gear
SKU: 4HF206-R MSG
Price: 178.31 USD
Availability: OutOfStock

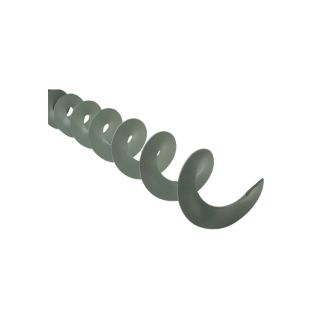

Martin 4HF206-R Helicoid Flighting Conveyor Screw, 4 in Dia x 118-1/2 in L, 4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 4HF206-R

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$178.31

Qty:

Product Details

Brand Name

Martin

Type

Helicoid Flighting

Description

Helicoid flights are formed in a special rolling machine by forming a steel strip into a continuous one-piece helix of the desired diameter, pitch and thickness to fit conveyor screw pipes. The helicoid flight is tapered in cross section, with the thickness at the inner edge approximately twice the thickness of the outer edge. Stock helicoid flight screw diameter from 4 in to 18 in and thickness from 3/16 in to 5/16 in. Right hand flight helix wraps around the pipe in a clockwise direction.

Martin Conveyor Screw, Helicoid Flighting, 4 in Dia, 118-1/2 in Length, Steel, 4 in Pitch, Right Hand Flight Type

Standards

CEMA Standard

Features

Limited to carbon steel

Specifications

Country of Origin:	US
Diameter:	4 in
Flight Type:	Right Hand
Length:	118-1/2 in
Material:	Steel
Pitch:	4 in
