4J 5/8 MSG

Name: 4J 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: 4J 5/8 MSG
Price: 13.38 USD
Availability: OutOfStock

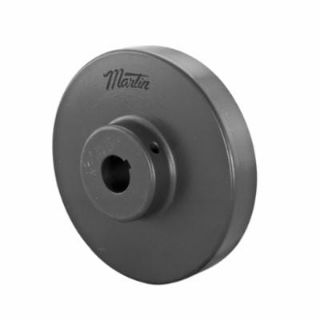

Martin Quadra-Flex® 4J 5/8 Bored-to-Size Type J Coupling Flange, 04 Coupling, 5/8 in Bore Dia, 2-3/8 in Length Through Bore, 1-5/8 in Hub Dia, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 4J 5/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$13.38

Qty:

Product Details

Brand Name

Martin

Type

Bored-to-Size Type J

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.

Martin Quadra-Flex® Coupling Flange, Bored-to-Size Type J, 04 Coupling, 5/8 in Bore Dia, 1-5/8 in Hub Dia, 7/16 in Hub Length, 3/16 x 3/32 in Keyway, 7600 rpm Maximum, 2-3/8 in Length Through Bore, 1/4-20 x 1/4 in Screw, Steel

Specifications

Bore Diameter:	5/8 in
Country of Origin:	US
Coupling Size:	04
Hub Diameter:	1-5/8 in
Hub Length:	7/16 in
Keyway Size:	3/16 x 3/32 in
Length Through Bore:	2-3/8 in
Material:	Steel
Maximum Speed:	7600 rpm
Screw Size:	1/4-20 x 1/4 in
