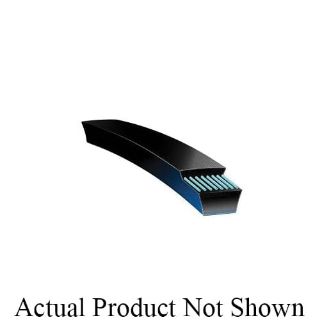

4L490 GAT

Truflex™
Manufacturer: Gates
Manufacturer part number: 4L490
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$12.23

Product Details

Brand Name

Gates

Alternate Supplier #

84002490

Description

Engineered with all the qualities of a great belt, including flexibility, durability and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.

Features

Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life. Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration. Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments. Perfect for auxiliary automotive applications like electric windows, windshield wipers, and central locking systems, drive pumps, power tools, and domestic appliance applications, FHP motors and light-duty applications. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:37
Automotive Part Number:2490
Belt Back Side:Smooth
Belt Inside:Smooth
Belt/Slab:Belt
Color:Black
Construcao:Banded
Cord Material:Polyester
Country of Origin:MX
Effective Length (in):48.95
Effective Length (mm):1243
GC Base Product:Truflex® V-Belts - 2 or 4L Section
Harmonized Tariff Code:4010.32.3000
Material:SBR
Max Temp (°C):+60
Max Temp (F):+140
Min Temp (°C):-30
Min Temp (F):-22
Number of Ribs/Strands:1
OC (in):49.05
OC (mm):1246
Proposition 65:NO
Secao:4L
Sided:Single Sided
Static Conductive:Yes
Thickness (in):0.281
Thickness (mm):7
Top Width (in):0.518
Top Width (mm):13
Unitset (V80):No
