4Q975 OZG

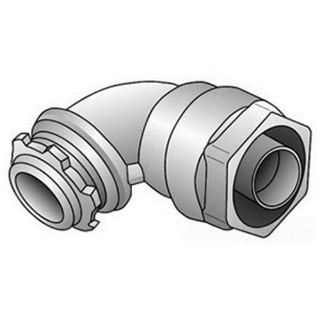

O-Z/Gedney 4Q-975 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 3/4 in Trade, 90 deg, Malleable Iron, Zinc Electroplated
Manufacturer: Appleton
Manufacturer part number: 4Q-975
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$16.54

Product Details

Brand Name

O-Z/Gedney

Type

Concretetight Liquid Tight Oiltight Raintight

Description

O-Z/Gedney Conduit Connector, Concretetight Liquid Tight Oiltight Raintight, Series: 4Q Series, 3/4 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 1-1/2 in W

Application

Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures

Standards

ARRA Compliant | RoHS Compliant | UL 11853 | CSA 009795 | UL 514B | CSA C22.2 File No. 18 | Federal Specification W-F-406E | Class I, Div 2 Per NEC 501.4(B) | Class I, Zone 2 Per NEC 505.15(C)(2) | Class II, Div 1 Per NEC 502.4(A)(1)(e) | Class II, Div 2 Per NEC 502.4(B)(2) | Class III, Div 1 Per NEC 503.3(A)(2) | Class III, Div 2 Per NEC 503.3(B) | NEC 504.20

Features

  • Tapered threaded male NPT hub
  • Compact, slim diameter with small turning radius
  • Intrinsically safe
  • Bonding wedge locknuts are recommended in hazardous locations
  • Suitable for wet locations
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Reusable ferrule
  • Inspection windows in ferrule to ensure full conduit engagement

Includes

Locknut and KO Sealing Ring

Specifications

Angle:90 deg
Country of Origin:MX
Dimensions:1-1/2 in W
Finish:Zinc Electroplated
Material:Malleable Iron
Series:4Q Series
Suitable For Use With:Liquid Tight Flexible Metallic Conduit
Trade Size:3/4 in
