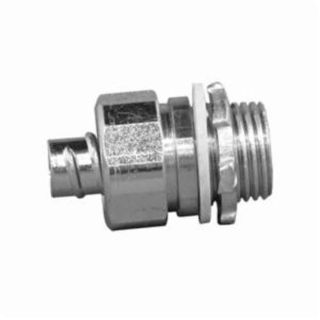

Actual Product May Vary From Image

4QS100T NER

Name: 4QS100T NER
Brand: Appleton
SKU: 4QS100T NER
Price: 16.78 USD
Availability: OutOfStock

1 IN LFMC CONN STL INSUL

Manufacturer: Appleton

Manufacturer part number: 4QS-100T

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$16.78

Qty:

Product Details

Brand Name

Appleton/O-Z/Gedney

Type

4QS Liquidtight Fittings

Description

Liquidtight Fittings, Type: Straight, Material: Steel/Zinc Plated, Trade Size 1, UL Standard: 514B, Dimensions: Body Length .97 Inches, Thread Length .66 Inches, Diameter 1.75 Inches

Application

For Terminating Liquidtight Flexible Metal Conduit to an Enclosure

Standards

UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1

Features

1 IN Trade Size Straight Liquidtight Connector, Tapered Male Hub Threads - NPT, Insulated Throat, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring

Specifications

Connection:	Male NPT Taper Threaded
Country of Origin:	USA
Environmental Conditions:	Raintight
Finish:	Zinc Plated
Material:	Steel
NEMA Rating:	FB-1
Size:	1 IN
Sub Brand:	ETP

Resources

Spec Sheet
