4QS475T NER

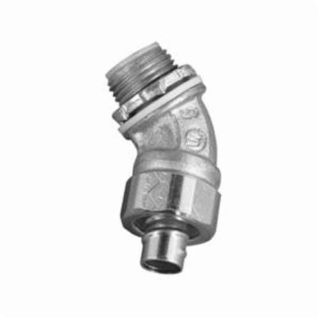

Picture of 4QS475T NER
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
4QS-475T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$22.06 / EA

Description

Brand Name

Appleton®

Type

Liquid Tight Oiltight Raintight

Description

Appleton® and O-Z/Gedney 4QS Series steel liquidtight fittings couplings have male NPT threads. 4QS liquidtight connectors and liquidtight flexible metallic conduit are used in applications where conditions of installation, operation or maintece require flexibility or protection from liquids, vapors or solids such as: machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and Class I, Division 2 wiring. The compact, slim diameter design results in a connector that offers a small turning radius.
Appleton® Conduit Connector, Liquid Tight Oiltight Raintight, Series: 4QS, 3/4 in, 45 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 2.53 in H x 1.62 in W

Application

For terminating liquid tight flexible metal conduit to an enclosure

Standards

RoHS Compliant | UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795,NEMA: FB-1

Features

  • Male NPT taper threaded connection
  • Insulated throat
  • Suitable for wet Locations
  • Suitable for use in class I, division 2 locations
  • Furnished with locknut and sealing ring
  • Compact, slim diameter with small turning radius
  • Liquidtight/Raintight/Oiltight
  • Long ferrule prevents pullout and tight bend conduit pop-out
  • Reusable ferrule
  • Raintight environmental conditions
  • 0.6 in L thread

Includes

Locknut and Sealing Ring

Specifications

Angle:45 deg
Color:Metallic
Country of Origin:CN
Dimensions:1.32 in L x 1.62 in W
Finish:Electroplated Zinc
Material:Malleable Iron
Series:4QS
Suitable For Use With:Flexible Metallic Liquid Tight Conduit
Trade Size:3/4 in

Products Specifications

Size
3/4 in
