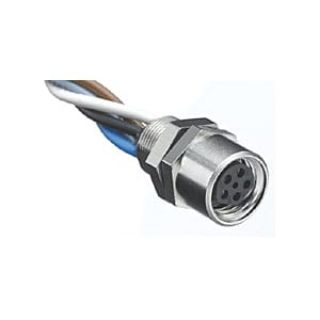

Actual Product May Vary From Image

4R3P00A27C300 WOO

Name: 4R3P00A27C300 WOO
Brand: Molex/Woodhead
SKU: 4R3P00A27C300 WOO
Price: 54.84 USD
Availability: OutOfStock

Brad® Nano-Change® 4R3P00A27C300 120090 3-Pole Single Ended Internal Thread Receptacle With 24 AWG PVC Lead, 60 VAC/75 VDC, 4 A, Straight Female Slot End

Manufacturer: Molex/Woodhead

Manufacturer part number: 4R3P00A27C300

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$54.84

Qty:

Product Details

Brand Name

Brad®

Type

3-Pole Single Ended Internal Thread

Description

Nano-Change® connectors are design to withstand harsh-industrial and weather environments. These connectors are used to interconnect miniature sensors and actuators found in industrial control applications. The small, compact M8 design also makes these connectors well suited for applications requiring a sealed connector in very tight spaces. Nano-Change® cordsets, receptacles and pre-wired distribution boxes are available in 3, 4 and 5-pole IEC compliant configurations.

Brad® Nano-Change® Receptacle, 3-Pole Single Ended Internal Thread, Series: 120090, 60 VAC/75 VDC, 4 A, Straight Female Slot End, NEMA 6, Industrial Grade, Brass, 30 cm L Dimensions

Standards

IP67 | UL File No. E46237

Features

24 AWG conductor cables
Internal thread coupling
Nickel plated brass coupling nut
-20 to 105 deg C temperature rating
None type keyway

Specifications

Amperage Rating:	4 A
Cable Length:	0.3 m
Connector Size:	M8
Connector Type:	Straight Female
Country of Origin:	DE
Dimensions:	30 cm L
Grade:	Industrial
Material:	Brass
NEMA Rating:	NEMA 6
Number of Poles:	3
Series:	120090
Slot End Style:	Straight Female
Voltage Rating:	60 VAC/75 VDC
Wire Pin Colors:	Black/Blue/Brown
