4S 7.99/1 S 2.938 HUB

Name: 4S 7.99/1 S 2.938 HUB
Brand: Hub City
SKU: 4S 7.99/1 S 2.938 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

20-2001493

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Type S Double Reduction

Description

Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement.

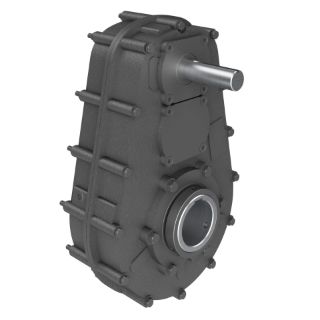

Hub City® Parallel Shaft Gear Drive, Type S Double Reduction, Series: 4 Series, 7.99:1 Gear Ratio, 40.1 hp, Shaft Input, Hollow Bore Output, 1-1/4 in Dia Input, 1/4 x 1/8 in Input, 3/4 x 3/16 in Output Keyway, Oil Lubrication, Shaft Mounting, Cast Iron, 12 in L x 18-15/16 in H Dimensions

Features

Rugged cast iron housing
High strength gearing
Alloy shafting
Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
Heavy duty industrial seals

Specifications

Dimensions:	12 in L x 18-15/16 in H
Gear Ratio:	7.99:1
Horsepower:	40.1 hp
Input Size:	1-1/4 in Dia
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/4 x 3/16 in Output
Lubrication Type:	Oil
Material:	Cast Iron
Mounting Type:	Shaft
Output Type:	Hollow Bore
Series:	4 Series
