Actual Product May Vary From Image

4TE2-BB-P MSG

Name: 4TE2-BB-P MSG
Brand: Martin Sprocket & Gear
SKU: 4TE2-BB-P MSG
Availability: OutOfStock

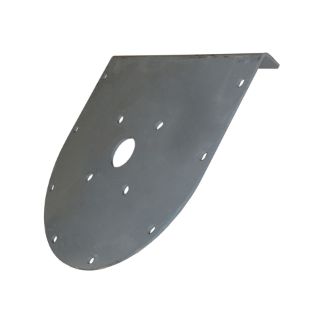

Martin 4TE2-BB-P Outside Trough End, For Use With Ball Bearing, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 4TE2-BB-P

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Type

Outside

Description

Martin Trough End, Outside, For Use With: Ball Bearing, 1 in Dia Coupling, 1 in Dia Shaft, 1-1/4 in Dia Minimum Hole, 3/8 in Dia Bolt, 1 in Bearing Size, 7/16 x 9/16 in Slot Size, 6 Bolts, 1.438 in W Top Flange, 3-5/8 in Top to Centerline of Shaft Hole, Steel, 8-1/8 in W x 1/4 in THK

Application

Used to support end bearing and cover when no trough support is required

Standards

CEMA/NIBA Standards

Features

Drilling for ball bearings or roller bearings
Laser cut to assure accuracy and quality
Plate only without bearing
Without feet

Specifications

Dimensions:	8-1/8 in W x 1/4 in THK
Material:	Steel
Specifications:	1 in Dia Coupling, 1 in Dia Shaft, 1-1/4 in Dia Minimum Hole, 3/8 in Dia Bolt, 1 in Bearing Size, 7/16 x 9/16 in Slot Size, 6 Bolts, 1.438 in W Top Flange, 3-5/8 in Top to Centerline of Shaft Hole
Suitable For Use With:	Ball Bearing
