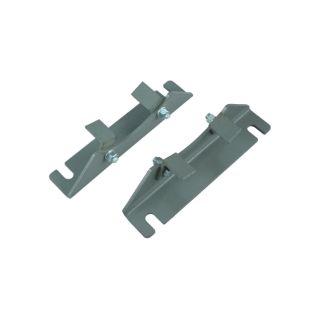

Actual Product May Vary From Image

4TS MSG

Name: 4TS MSG
Brand: Martin Sprocket & Gear
SKU: 4TS MSG
Availability: OutOfStock

Martin 4TS Trough Saddle, For Use With 4 in Trough Conveyor, 3/8 in Mounting Dia Bolt, 1.438 in W Support Flange, 5-3/4 in Mounting Bolt Centers, 1 in Foot Mounting Location, 4-5/8 in Height to Trough Centerline, 2 Mounting Bolts, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 4TS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Description

Martin Trough Saddle, For Use With: 4 in Trough Conveyor, 3/8 in Dia Mounting Bolt, 1.438 in W Support Flange, 5-3/4 in Mounting Bolt Centers, 1 in Foot Mounting Location, 4-5/8 in Height to Trough Centerline, 2 Mounting Bolts, Steel, 1-5/8 in L x 7-3/8 in W x 3/16 in THK

Application

Used to support the trough where trough flange feet cannot be used at connections

Standards

CEMA/NIBA Standards

Features

They align and fasten the trough to the floor or an existing structure
Laser cut flat pieces to ensure consistent finish and high quality
Slotted mounting holes to help accommodate installation variances

Specifications

Dimensions:	1-5/8 in L x 7-3/8 in W x 3/16 in THK
Material:	Steel
Specifications:	3/8 in Dia Mounting Bolt, 1.438 in W Support Flange, 5-3/4 in Mounting Bolt Centers, 1 in Foot Mounting Location, 4-5/8 in Height to Trough Centerline, 2 Mounting Bolts
Suitable For Use With:	4 in Trough Conveyor
