Actual Product May Vary From Image

4U8V400 BRN

Name: 4U8V400 BRN
Brand: Regal Rexnord
SKU: 4U8V400 BRN
Availability: OutOfStock

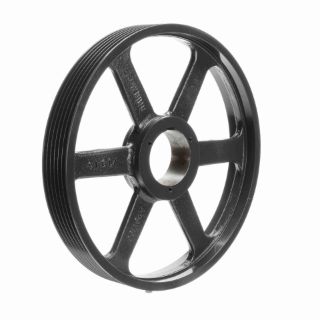

Browning® 1063791 Type 13 Arm Multiple Sheave, 2.38 to 5.5 in Split Taper Bore, 40 in OD, 4 Grooves, 39.8 in Dia Pitch, 4-7/8 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1063791

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 13 Arm

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 13 Arm, Split Taper Bore, 2.38 to 5.5 in Bore, 40 in OD, 39.8 in Pitch Diameter, 4 Grooves, 4-7/8 in Face Width, U0 Bushing, 5-31/32 in Overall Length, For Use With: GripBelt® 8V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
All sheaves are statically balanced to assure smooth and vibration free performance
Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:	2.38 to 5.5 in
Bore Type:	Split Taper
Bushing Type:	U0
Country of Origin:	MX
Face Width:	4-7/8 in
Material:	Cast Iron
Number of Grooves:	4
Outside Diameter:	40 in
Overall Length:	5-31/32 in
Pitch Diameter:	39.8 in
Suitable For Use With:	GripBelt® 8V Cross Section V-Belt
