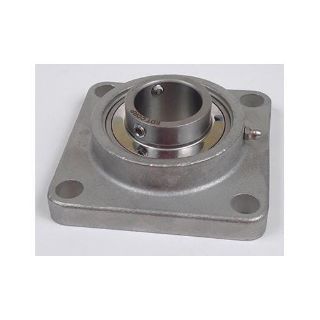

Actual Product May Vary From Image

4Y4AE8-35MWX TKN

Name: 4Y4AE8-35MWX TKN
Brand: Timken
SKU: 4Y4AE8-35MWX TKN
Price: 1,416.69 USD
Availability: OutOfStock

EDT Stainless BB Classic- Assembly

Manufacturer: Timken

Manufacturer part number: 4Y4AE8-35MWX

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,416.69

Qty:

Product Details

Brand Name

EDT

Description

Designed with corrosion-resistant materials and food-grade lubricant, the product can withstand aggressive washdowns management and a variety of wet and dry contaminants. The result? Enhanced reliability that helps extend bearing life, improve production uptime and – most importantly – elevate food safety.

EDT Stainless BB Classic- Assembly | 35 mm 1.4 in Bore | Flange: 4-Bolt Square

Features

Stainless steel ball bearing inserts with set screw locking, metal cage and double lip seal for higher ingress protection
Hygienic construction (smooth surface, laser marking, co-molded bushings) and metal cage for higher food safety
Available with food-grade Solid Lube, food-grade grease or relubricable option

Specifications

Bearing Material:	Stainless Steel
Bearing Type:	Mounted Ball Bearing
Bolt Center - in:	3.63
Bolt Center - mm:	92.202
Bolt Circle Diameter - in:	5.13
Bolt Circle Diameter - mm:	130.3
Bolt Size - in:	0.5
Bolt Size - mm:	12
Bore Size (ID) - in:	1.378
Bore Size (ID) - mm:	35.0012
Bore Type:	Cylindrical
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard Duty
Dynamic Load Rating:	4900
End Type:	Open
Housing Configuration:	4 Bolt Square Flange
Housing Material:	Stainless Steel
Housing Outside Diameter - in:	4.75
Housing Outside Diameter - mm:	120.65
Housing Style:	4 Bolt Square Flange
Insert Part Number:	4Y207-35MWX
Internal Clearance:	CN
Length Through Bore - in:	1.79
Length Through Bore - mm:	45.466
Load Rating UOM:	LB
Locking Type:	Set Screw
Manufacturer Product Page Link:	https://www.edtcorp.com/docs/2017-Product-Catalog.pdf
Material - Rolling Elements (Ball or Roller):	Stainless Steel
Material Insert Bearing:	Stainless Steel
Mounting Method:	Set Screw
Mounting Type:	Flange: 4-Bolt Square
Nominal Bolt Center to Center - Inch:	3.63
Nominal Bolt Center to Center - Millimeter:	92.202
Number of Mounting Holes:	4
Operating Temperature Max:	250F
Operating Temperature Min:	-150F
Outer Diameter Type:	Spherical
Overall Height - in:	1.79
Overall Height - mm:	45.466
Overall Length - in:	4.75
Overall Length - mm:	120.65
Overall Width - in:	1.79
Overall Width - mm:	45.466
Relubricatable:	No
Retainer Material:	Stainless Steel
Retainer Type:	Stainless Steel
Rolling Element:	Ball Bearing
Row Type:	Single Row
Self Aligning:	Yes
Static Load Rating:	2751
