Picture of 4YSR16X3/4 BRN
Actual Product May Vary From Image

4YSR16X3/4 BRN

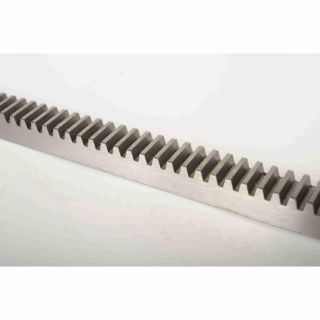

Browning® 1234400 Gear Rack, 16 Diametral Pitch, 20 deg Pressure Angle, 3/4 in W Face, 4 ft OAL, 0.688 in, Steel
Manufacturer: Regal Rexnord
Manufacturer part number: 1234400
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$207.62

Product Details

Brand Name

Browning®

Description

Browning® Gear Rack, 3/4 in Face Width, 16 Diametral Pitch, 0.688 in Pitch Line to Back, 4 ft Overall Length, 3/4 in Overall Thickness, 20 deg Pressure Angle, Steel

Application

Forestry, Metals, Cranes and Hoists Industries

Standards

AGMA Class 11

Features

  • Cut oversized to allow for matched ends
  • In addition to our large stock offering of standard gear rack
  • Mating spur gears must have same pressure angle and pitch
  • Standard lengths are extra long to allow for cutting and matching ends

Specifications

Country of Origin:US
Diametral Pitch:16
Face Width:3/4 in
Material:Steel
Overall Length:4 ft
Overall Thickness:3/4 in
Pitch Line to Back:0.688 in
Pressure Angle:20 deg
