5 1/2 EB RHUB KOP

Name: 5 1/2 EB RHUB KOP
Brand: Regal Rexnord
SKU: 5 1/2 EB RHUB KOP
Availability: OutOfStock

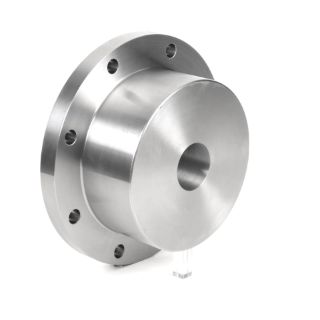

Kop-Flex® 1960517 Rigid Hub, 5-1/2 Coupling, 8 in Dia Bore, 6-31/32 in Length Through Bore, 10-3/4 in Dia Hub, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1960517

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Kop-Flex®

Kop-Flex® Rigid Hub, 5-1/2 Coupling, 8 in Bore Dia, 10-3/4 in Hub Dia, 6-31/32 in Hub Length, 3880 rpm Maximum, 6-31/32 in Length Through Bore, Steel

For use with series H exposed bolt gear coupling

Large bore capacity with O-ring seal design and the most economical gear coupling design
Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
Flange interchangeable with all the competitors
Large gear tooth pitch diameter with high torque capacity
Close fitting, tight tolerance flange holes and bolt holes
Field replaceable and standard nitrile rubber O-ring seal
Grease lubrication required
Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves
