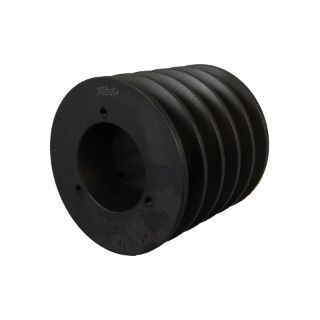

Actual Product May Vary From Image

5 B 52 SD MSG

Name: 5 B 52 SD MSG
Brand: Martin Sprocket & Gear
SKU: 5 B 52 SD MSG
Price: 192.09 USD
Availability: OutOfStock

Martin 5 B 52 SD Solid Type A-1 Conventional Stock Sheave, 1 to 1-11/16 in QD® Bushed Bore, 5.55 in OD, 5 Grooves, 5.2 in Dia Pitch, 4 in W Face

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 5 B 52 SD

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$192.09

Qty:

Product Details

Brand Name

Martin

Type

Solid Type A-1

Description

Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to accept "A", "B", "C" and "D" belts.

Martin Conventional Stock Sheave, Solid Type A-1, QD® Bushed Bore, 1 to 1-11/16 in Bore Dia, 5.55 in Outside Dia, 5.2 in, 5 Grooves, 4 in Face Width, SD Bushing, 4 in Overall Length, For Use With: A/B Cross Section Belts, Class 30 Gray Cast Iron

Features

Interchangeable with other manufacturer's QD bushings
Tolerances adhere to industry guidelines
Precise machining and processes ensure consistent finish and high quality
Statically balanced with maximum rim speed marked on print

Specifications

Bore Diameter:	1 to 1-11/16 in
Bore Type:	QD® Bushed
Bushing Type:	SD
Country of Origin:	US
Face Width:	4 in
Material:	Class 30 Gray Cast Iron
Number of Grooves:	5
Outside Diameter:	5.55 in
Overall Length:	4 in
Pitch Diameter:	5.2 in
Suitable For Use With:	A/B Cross Section Belts
