Actual Product May Vary From Image

50 1OL AD

Name: 50 1OL AD
Brand: IDC-USA
SKU: 50 1OL AD
Price: 2.05 USD
Availability: InStock

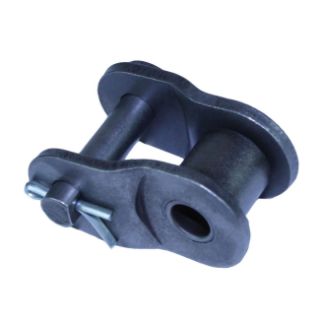

IDC Select® IDC 50-1OL Spring Clip Offset Link, 50-1 Chain, 5/8 in Pitch, 0.87 in OAW, 0.2 in Dia Pin, Carbon Steel

Manufacturer: IDC-USA

Manufacturer part number: IDC 50-1OL

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	5
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.05

Qty:

Product Details

Brand Name

IDC Select®

Type

Spring Clip

Description

IDC Select® Offset Link, Spring Clip, 50-1 Chain, 5/8 in Pitch, 0.87 in Overall Width, 0.2 in Pin Dia, 0.59 in Link Plate Height, 0.08 in Link Plate Thickness, Carbon Steel

Application

For 50 ft L single strand ANSI standard chains

Standards

ASME B29.1

Features

Solid bushing/roller design

Specifications

Chain Size:	50-1
Link Plate Height:	0.59 in
Link Plate Thickness:	0.08 in
Material:	Carbon Steel
Overall Width:	0.87 in
Pin Diameter:	0.2 in
Pitch:	5/8 in
