50 DLT DROPOUT BE=5 LOV

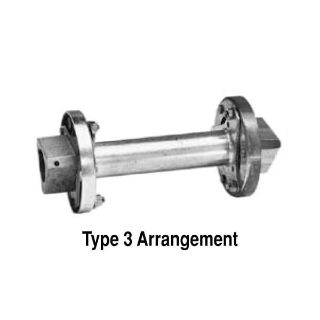

This arrangement is specifically designed for the pump industry and is available in a variety of industry standard shaft separations. The shaft center spacer drops out to facilitate easier maintenance of pump parts without disturbing the alignment of pump and motor. Spacer type couplings utilize either standard delta hubs or optional round hubs. The center member of the Deltaflex® is captured by the construction of the spacer flanges for greater safety. Standard spacer drop out lengths are available to accommodate shaft separations of 3-1/2, 4.38, 5, 7, 10, 12 and 15 in. Special spacer lengths and stainless steel spacer couplings are available as an option. Type 3 (Spacer Type) Deltaflex® coupling are comprised of two hubs, two spacer flanges (with hardware) and a dropout spacer.

Lovejoy® Drop-Out Spacer, Type 3, Series: Deltaflex, For Use With: Size 50 Couplings, Specifications: 5 in Length Thru Bore, 5 in Drop Out Length, Metal, Metallic, 2 in Dia
