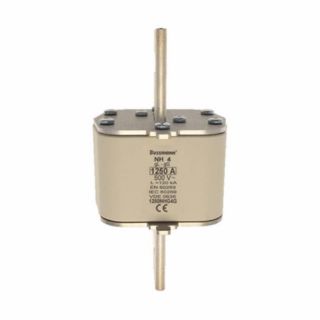

Actual Product May Vary From Image

500NHG4G BSF

Name: 500NHG4G BSF
Brand: Bussmann
SKU: 500NHG4G BSF
Availability: OutOfStock

Bussmann 500NHG4G HRC Low Voltage Non-Indicating NH Fuse Link, 500 A, 500 VAC, 120 kAIC Interrupt, Class: GL/GG/C

Manufacturer: Bussmann

Manufacturer part number: 500NHG4G

Availability: Expected Leadtime 72 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

HRC Low Voltage Non-Indicating

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, HRC Low Voltage Non-Indicating, 500 A, 500 VAC, 120 kAIC Interrupt, Class: GL/GG/C, 45 to 62 Hz, 52.362 in L x 44.094 in H Body Size

Application

Industrial Facilities and Factory Facilities, Safety and Security Systems, Power Distribution and Control Applications

Standards

RoHS Compliant

Features

Package Type: Standard
Width: 8.661 in
Weight: 4.884 lbs
Height: 44.094 in
Indicator: Non-Indicating

Specifications

Amperage Rating:	500 A
Body Size:	52.362 in L x 44.094 in H
Class:	GL/GG/C
Country of Origin:	ES
Frequency Rating:	45 to 62 Hz
Interrupt Rating:	120 kAIC
Voltage Rating:	500 VAC
